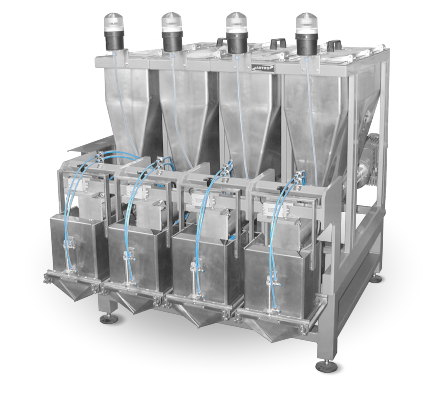

Modular auger dosing weighers AVS series are designed for dosing loose goods and small pieces (egg, flour mixtures, flour, powdered sugar, oat flakes, shredded coconut, pieces of meat, fish and vegetables, salads, etc.).

Design of the weigher enables an assembling of individual lanes side by side with minimal requirements for modification of existing packaging machine. The packaging line, which is equipped with weights AVS, you can connect up to 8 streams in one system.

Weigher is very useful where easy dismounting, cleaning and quick product / portion change is needed.

AVS2/2 two streams auger dosing weigher AVS2/4 four streams auger dosing weigher AVS2/3 three streams auger dosing weigher
AVS2/2 AVS2/4 AVS2/3
Auger dosing weighers AVS
Technical parameters
Machine type
Number of lanes
Output* (doses/min.) 15 15 15
Weighing range (g) 80 - 500 80 - 4000 80 - 10000
Accuracy according to standard "e"
according to standard "e"
according to standard "e"
Volume of weighing bucket (ml)
to 500
to 8000
to 13000
Power (W) 300 400 400
Power supply 230 V/50 Hz 230 V/50 Hz 230 V/50 Hz
Air consumption at 0,6 MPa (l / dose) 0,1 0,1 0,1
Weight (kg) 100 120 150
Dimensions H x W x L (mm) 650 x 255 x 1000
1100 x 255 x 1700 1200 x 255 x 1750

* Capacity depends on dose size and kind of goods.

tensometric weighing unit
horizontal auger
closing the end of the screw
display the actual weight in grams
monitoring of products level in the hopper
areas which are in contact with the goods are made of stainless steel
all parts of the machine are protected health harmless surface treatment

30 memories for different kinds of goods (8 characters for name)
automatic state diagnostics
automatic weight tarring
set of all functions is performed from a mobile control panel
5 international languages for control
2 weighing modes
2 modes of emptying
counting of average portion size from previous 20 portions
possibility of connection to PC
getting higher output rates by adding of supplementary modules

storage hopper and discharge hopper according to customers specification
for frozen foods (vegetables, french fries)
covering with exhaust outlet
separation of abrasion or juices from packaged goods
