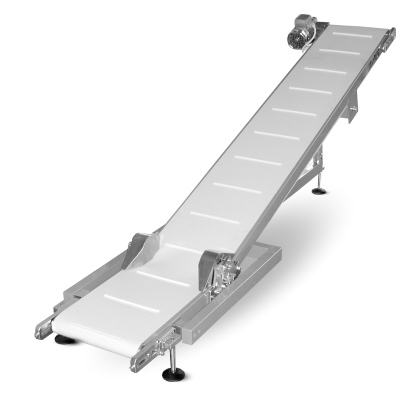

Aftagnings transportørerne anvendes til at transportere de færdige poser, fyldte sække, krukker, spande eller andre beholdere for eksempel fra diverse pakkemaskiner.
Technical parameters
| Conveyor type | OD4 250 | OD4 500 | OD5 |
| Conveyor belt width (mm) | 250 | 500 | from 250 to 500 |
| Belt speed (m/min.) | 26 | 26 | 13 |
| Conveying height (mm) | od 700 do 1100 | od 700 do 1100 | |
| Adjustable conveyor height (mm) | from 380 to 980 | ||
| Power supply | 3 x 230 V/400 V - 50Hz | 3 x 230 V/400 V - 50Hz | 3 x 230 V/400 V - 50Hz |
| Power (W) | 180 | 180 | 180 |
| Noise (dB) | up to 50 | do 50 | do 50 |
| Conveyor weight (kg) | 80 (100) | 80 (100) | from 80 to 100 |
| Dimensions H x W x L (mm) | 700-1100x513x2150 | 700-1100x513x2150 | ...x470x2250 |
Products
| Conveyor type | OD4 250 | OD4 500 | OD5 |
| bags | ● | ● | ● |
| sacks | ● | ● | ● |
| jars | ● | ||
| glasses | ● | ||
| buckets | ● |
Advantages
| Conveyor type | OD4 250 | OD4 500 | OD5 |
| robust construction | ● | ● | ● |
| wide possibility of use | ● | ● | ● |
Modification
| Conveyor type | OD4 250 | OD4 500 | OD5 |
| dimensions according to customer requirements | ● | ● | ● |
