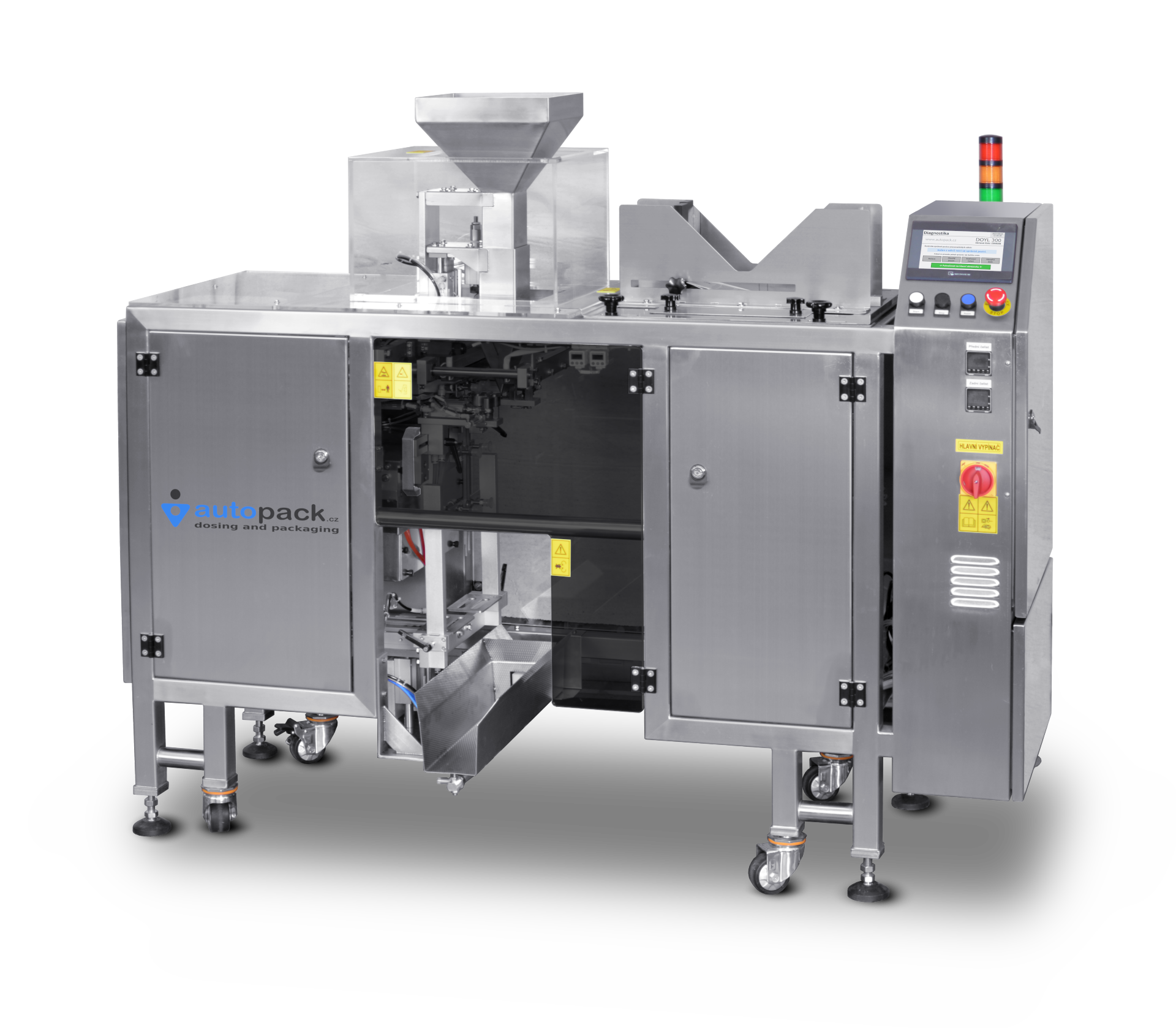

DOYL series packaging machines are designed for packaging products in pre-made bags. This allows packaging into more attractive bags compared to vertical or horizontal machines.
The K300 and K450 packaging machines belong to the basic category. These types work in a step-by-step manner and achieve lower performance. The L210 and L260 machines belong to the medium category. These machines work in a linear manner, i.e. the bag is moved between individual operations. The highest series is represented by the R240 and R300 machines. The basis of these machines is a rotary carousel, thanks to which high performance is achieved.
| Machine type | Bag width | Bag length | Output |
| DOYL K300 | 100–300 mm | 120–420 mm | up to 15 bags/min. |
| DOYL K450 | 250–450 mm | 250–600 mm | up to 15 bags/min. |
| DOYL L210 | 110–210 mm | 110–310 mm | up to 20 bags/min. |
| DOYL L260 | 110–260 mm | 140–340 mm | up to 20 bags/min. |
| DOYL R240 | 80–240 mm | 100–320 mm | up to 30 bags/min. |
| DOYL R300 | 100–300 mm | 150–450 mm | up to 30 bags/min. |

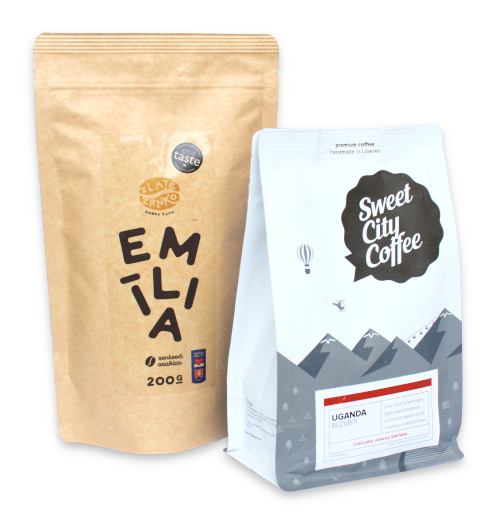

Bag types
doypack
gusseted bag
flat pouch
zipper bag
quad seal bag
Packaging process
1. Bag feeding
2. Bag opening
3. Product filling
4. Heat sealing
5. Bag discharge
Dosing systems
multihead weigher
linear weigher
auger filler
volumetric cup filler
Bag magazines
magazine up to 30 bags
magazine up to 150 bags
Accessories
zip opening unit
zip closing unit
inkjet printer
thermal transfer printer
printer bracket
heavy bag support
outfeed conveyor
scoop dispenser
extraction system
checkweigher (L260 only)
Machine description
heat-sealable bag sealing jaws
stainless steel design
Mitsubishi/Siemens control system
Technical parameters
| Machine type | Supply voltage | Power consumption | Air consumption at 0.6 MPa | Weight | Dimensions* h x l x w |
| DOYL K300 | 230 V/50 Hz | 2.0 kW | 200 l/min | 380 kg | 1380x1690x870 |
| DOYL K450 | 230 V/50 Hz | 2.0 kW | 300 l/min | 570 kg | - |
| DOYL L210 | 230 V/50 Hz | 2.0 kW | 200 l/min | 1500 kg | 1560x2350x1010 |
| DOYL L260 | 3x400 V/50 Hz | 5.5 kW | 560 l/min | 1850 kg | 1800x3310x1090 |
| DOYL R230 | 3x400 V/50 Hz | 3.0 kW | 600 l/min | 1800 kg | 1850x2800x1700 |
| DOYL R300 | 3x400 V/50 Hz | 3.2 kW | 800 l/min | 2500 kg | 1620x2130x1750 |
