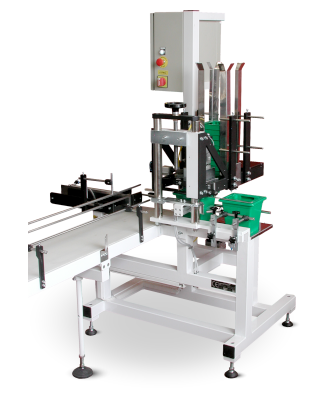

Closing devices UZ1 is intended for mounting into the line for closing of solid plastic or paper doses by putting of lids.
Setting of different sizes for different caps is mechanical.
Operation management is provided by small control system.
It is supplied especially to machines of NP type or similar.
Lids are placed in a magazine that can be removed when empty and insert a new filled magazine.
Technical parameters
| Machine type | UZ1af | UZ1bf |
| Output* (ks/min.) | 30 | 20 |
| Dose dimensions (mm) | diameter 110 and 140, height 131 and 128 | diameter 110 and 185 |
| Power supply | 230 V/50 Hz | 230 V/50 Hz |
| Power (W) | 50 | 50 |
| Air pressur (MPa) | 0,4 - 0,8 | 0,4 - 0,8 |
| Air consumption at 0,6 MPa (liters per cycle) | 10 | 15 |
| Weight (kg) | 120 | 130 |
| Dimension H x Š x L (mm) | 2250x1000x900 | 2100x1180x1250 |
* The capacity is dependent on the size of jars.
